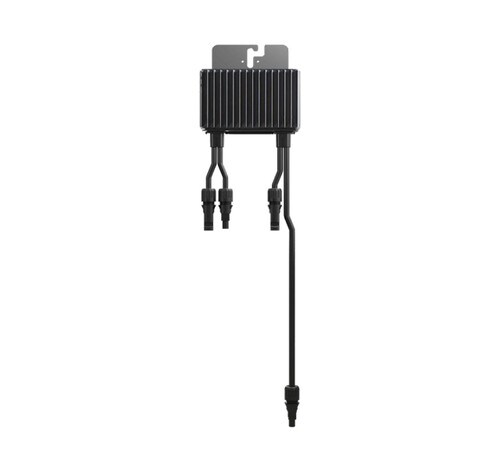

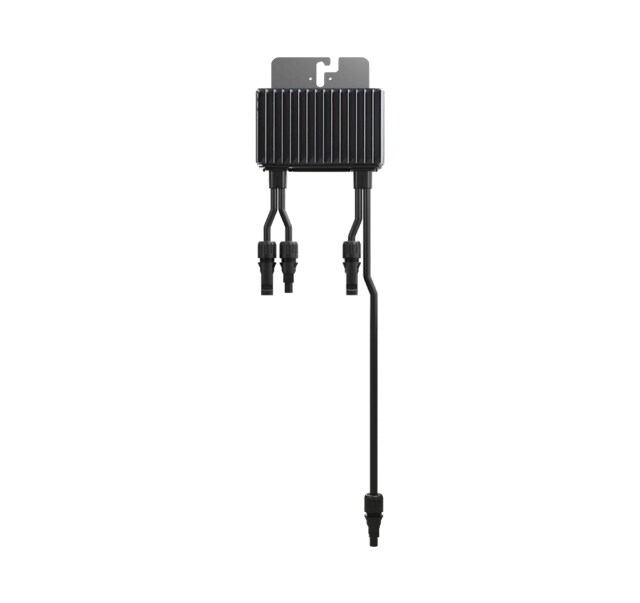

SOLAREDGE Optimizador S1000

Referência do fabricante S1000-1GMXMBT

Nossa referência 36-114729

Optimizador S1000 para modulos de alta potencia y bifaciales

Voc Max = 125V
Isc Max = 15A

Comprobar compatibilidad en SolarEdge Designer

Classe Proteção IP68

Certificados BE NL LU

Tipo de acessório Otimizador

Rated input DC power (W) 1 050 Max input voltage (V) VOC max 125

Max short circuit current ASC (A) 15,0

Max efficiency 99,5% Weighted efficiency 98,8%

Overvoltage category II Max output voltage (VDC) 80 Max output current (ADC) 18

Optimizer compatible inverter Three Phase SE16K - SE40K

Max system voltage (V) 1 000 Input/output connector MC4

Input wire length 1,3m Output wire length 4,8m

Module installation Landscape Connection method Single input for series connected modules
